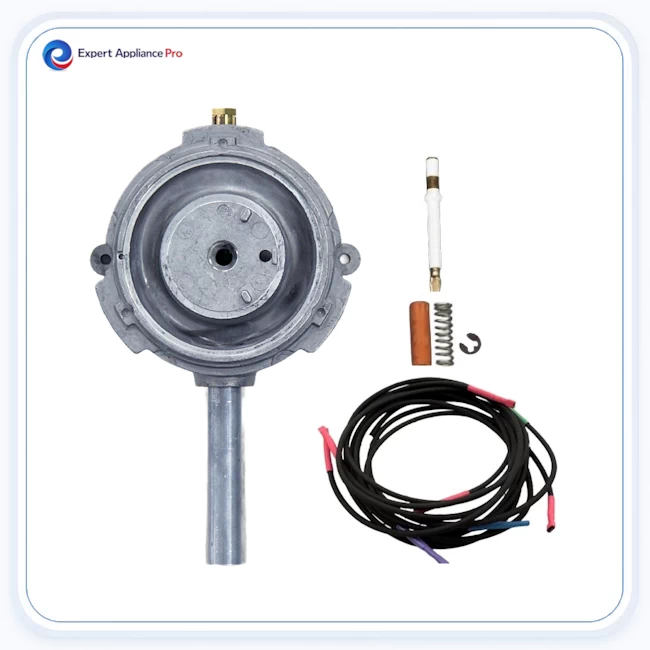

Wolf R & RT Series Burner Body, Electrode & Five-Wire Ignition Repair Kit
Burner body, spark electrode and ignition-wire set for weak, intermittent or failed burner ignition
R304, R366, R364C, R364G, R488, R486C +25 more View all 31 compatible models Show fewer compatible models
R304, R366, R364C, R364G, R488, R486C, R486G, R484DG, R484DC, R484CG, R484F, R484CF, R606CG, R606DC, R606DG, R606F, R604CF, R604GF, RT366, RT366-LP, RT364C, RT364G, RT362F, RT488, RT486C, RT486G, RT484DG, RT484DC, RT484CG, RT484F, and RT484CFEvery order is manually reviewed by our parts experts before processing. If you provide your model or serial number and we ship the wrong part, we’ll cover the return or exchange, including a prepaid return label.
OEM part description
Expert Appliance Pro supplies the genuine Wolf burner body, spark electrode, and complete five‑wire ignition set together as our technician‑recommended repair kit for select R Series ranges and RT Series rangetops. The burner body supports proper burner operation, while the electrode and ignition wires deliver the high‑voltage spark produced by the separate spark module to the surface burners.
This kit is ideal for weak spark, delayed ignition, repeated clicking without lighting, or burners that fail to ignite consistently.
Part details
The spark electrode can only ignite the burner properly when the high‑voltage ignition signal reaches it consistently. Over time, repeated burner heat exposes ignition wires, which can harden the insulation, weaken the terminals, damage the internal conductor, or create paths for high‑voltage leakage to surrounding metal.
As a result, the electrode may misfire, spark intermittently, or fail to ignite the burner altogether.
Specifications / Important Notes:
- Part Type: Burner base, electrode and ignition-wire repair kit
- Application: Wolf R Series ranges and RT Series rangetops
- Includes: Genuine Wolf burner base
- Includes: Genuine Wolf spark electrode
- Includes: Five genuine Wolf ignition wires
- Ignition Type: High-voltage spark ignition
- Burner Base Function: Supports the burner assembly and directs the gas-and-air mixture into the burner
- Electrode Function: Produces the spark for burner ignition
- Wire Function: Carries high-voltage spark energy to the electrodes
- Burner Caps and Rings: Not included
- Spark Module: Not included
- Kit Source: Expert Appliance Pro technician-recommended repair set
- Brand: Genuine Wolf components
Tech Tip: During burner service, the spark electrode can seize or be difficult to remove from an aged burner body, and the ceramic insulator may crack or break during disassembly. Grease, food residue, and carbon buildup around the burner and electrode can also interfere with spark performance. Before reassembly, inspect the ignition wires for hardened insulation, damaged terminals, excessive resistance, or signs of arcing.
