Sub-Zero 650 Parts Catalog

Sub-Zero 650 Parts List

Model Variations | Specs | Troubleshooting Help

Expert Appliance Pro Sub-Zero 650 parts logo Genuine Factory Original Parts
Parts Dept. Call or Text: 1-914-294-2432 ET 1-281-817-1088 CT 1-509-293-9290 PT Open now (ET)
Back to Sub-Zero Hub Email Parts Research

650 Model Variations

The 650 model series includes standard-door and glass-door versions, and the G models are the glass-door variations. Extra letters and suffixes such as /O, /P, /S, /B, LH, RH, and BI identify finish, hinge, or installation variations. Use 650 as the default search if your full model is not shown. Check your model tag before ordering replacement parts.

Model variations, specifications, troubleshooting help, and genuine replacement parts for the Sub-Zero 650 series.

650 Model Overview and Specifications

Built-in 36-inch over-and-under refrigerator/freezer with dual refrigeration, automatic ice maker, front venting, and multiple finish options across the 650 family.

The core 650 family production run spans the late 1990s through the 2000s. The main /F, /O, and /S versions were produced from 1996 to 2008. The /P and /B versions were produced from 2003 to 2007. The 650G/F, 650G/O, and 650G/S glass-door versions ran from 2003 to 2008, while 650G/P and 650G/B ran from 2003 to 2007.

Model 650 units do not include a built-in water filter. The closest current official replacement concept is the 36-inch Classic over-and-under refrigerator/freezer family.

Factory Specs & Features
  • Sub-Zero dual refrigeration design with automatic ice maker.
  • 3 adjustable glass shelves and 1 stationary glass shelf in the refrigerator section.
  • High-humidity compartment with dividers and adjustable roll-out deli basket.
  • 2 adjustable refrigerator door shelves, adjustable dairy compartment, and egg container.
  • Full-extension roll-out freezer drawer with two-tier wire storage baskets.
  • Shipping weight varies by finish, with listed brochure weights around 482 lbs to 515 lbs.
  • Annual energy usage shown in the brochure is about $44 at the stated electricity rate.
Maintenance / Owner Checks Before Calling Service
  • Check the door gasket for tears, splits, bunching, or visible air gaps.
  • Clean dust buildup around the condenser area and lower grille opening.
  • Confirm doors are closing fully and shelves or bins are not blocking closure.
  • Check for unusual fan noise, warm cabinet edges, or longer-than-normal run times.
  • Inspect the icemaker area for fill problems, frozen clumps, or bucket interference.
Built-In Type Over-and-under refrigerator/freezer with dual refrigeration and automatic ice maker.
Overall Size 36" W × 84" H × 24" D
Rough Opening 35 1/2" W × 83 3/4" H × 24" D
Capacity 15.7 cu ft refrigerator / 4.9 cu ft freezer
Door Swing Clearance 36 1/16" W
Electrical 115V AC / 60 Hz / 15 amp dedicated circuit
Plumbing 1/4" OD copper line / 20-100 psi
Estimated Cost When New Original MSRP varied by year, finish, and dealer quote. The brochure in hand does not list one fixed MSRP.
Comparable Model Purchased Today 36" Classic over-and-under built-in refrigerator/freezer family. Current replacement pricing varies by finish, panel-ready setup, configuration, freight, installation needs, and dealer quote. If your current unit uses custom panels, panel-kit hardware may also be needed to reuse them.
Estimated Pre-Owned Value Estimated used-market value: $2,000-$7,000 depending on condition, finish, and customization.

Standard Door Models

Glass Door Models

Part Categories

Most Common Replacement Part

Door Seals / Gaskets
Door seals, gasket sets, and common 650 seal replacements.
3

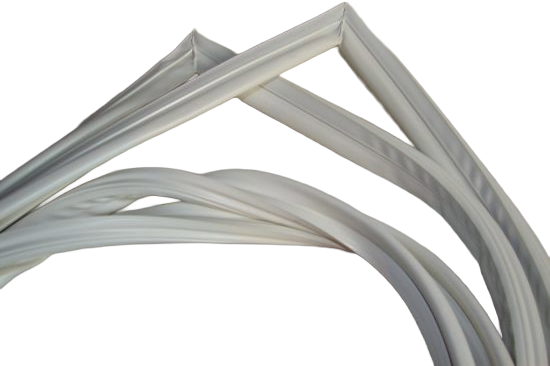

Sub-Zero 650 door seal gasket replacement part
Door seal gaskets are the most commonly replaced parts on 650 models. Common indicators of gasket failure include torn or split sections, exposed gasket magnets, bunched corners, water dripping around the seal, rust-colored stains or mildew on the gasket, visible gaps when the door is closed, poor door closure, and extended appliance run times. Check the bottom edge of the gasket closely, as tears in that area are a common cause of interior rust. If rust is already forming, replacing the seal is the only way to keep the problem from getting worse.
Select the door seal needed

Find Sub-Zero 650 Parts by Category

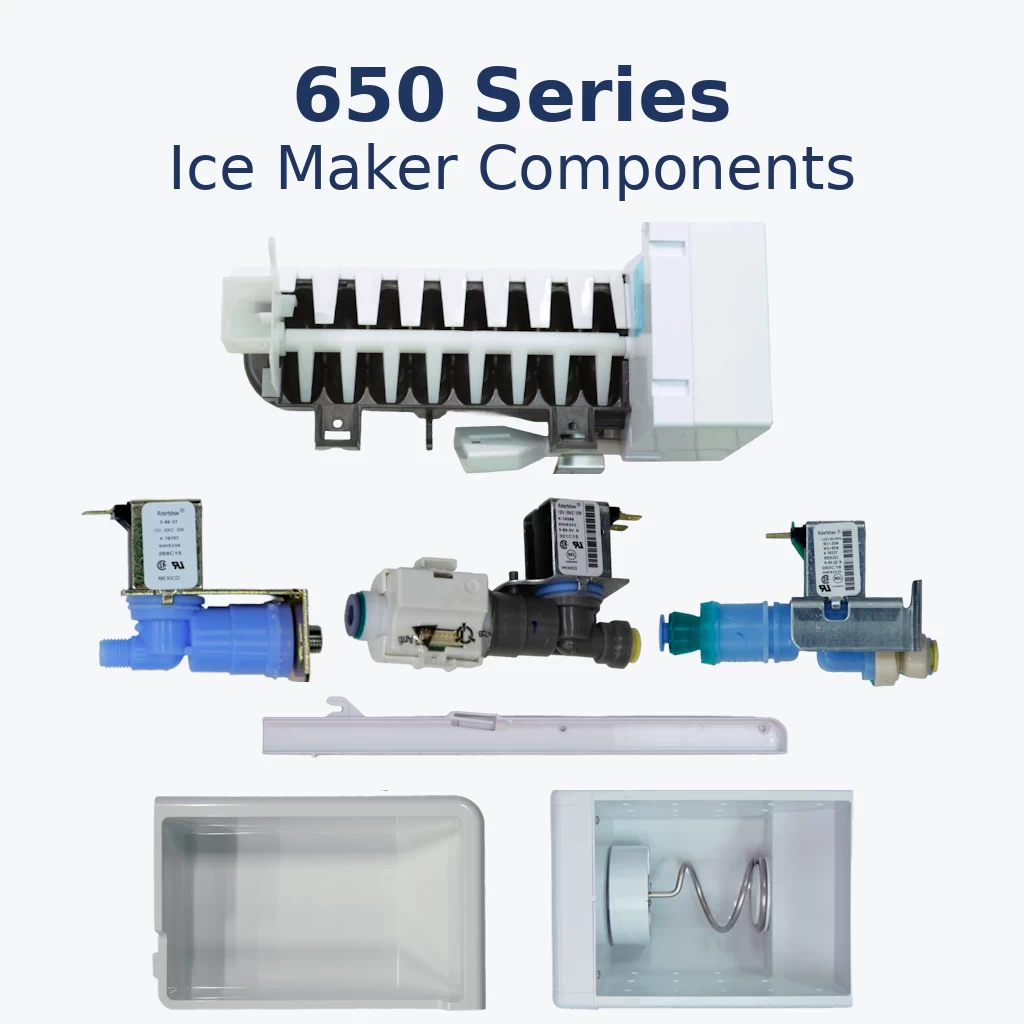

Icemaker assemblies, ice buckets, and related ice-production parts. Typical DIY difficulty: easy to moderate.
Select the icemaker or ice bucket part needed

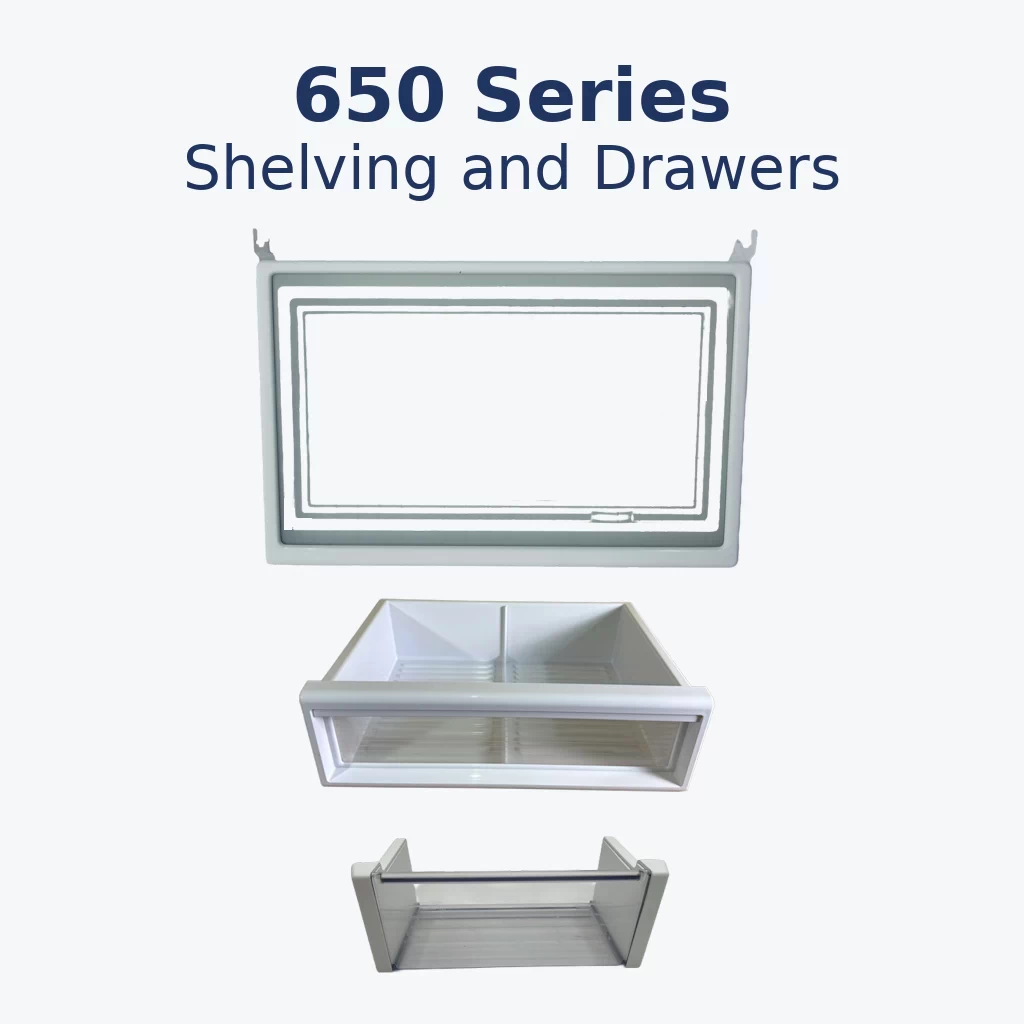

Shelves, bins, drawers, baskets, light shields, and other interior parts. Typical DIY difficulty: easy.
Select the interior part needed

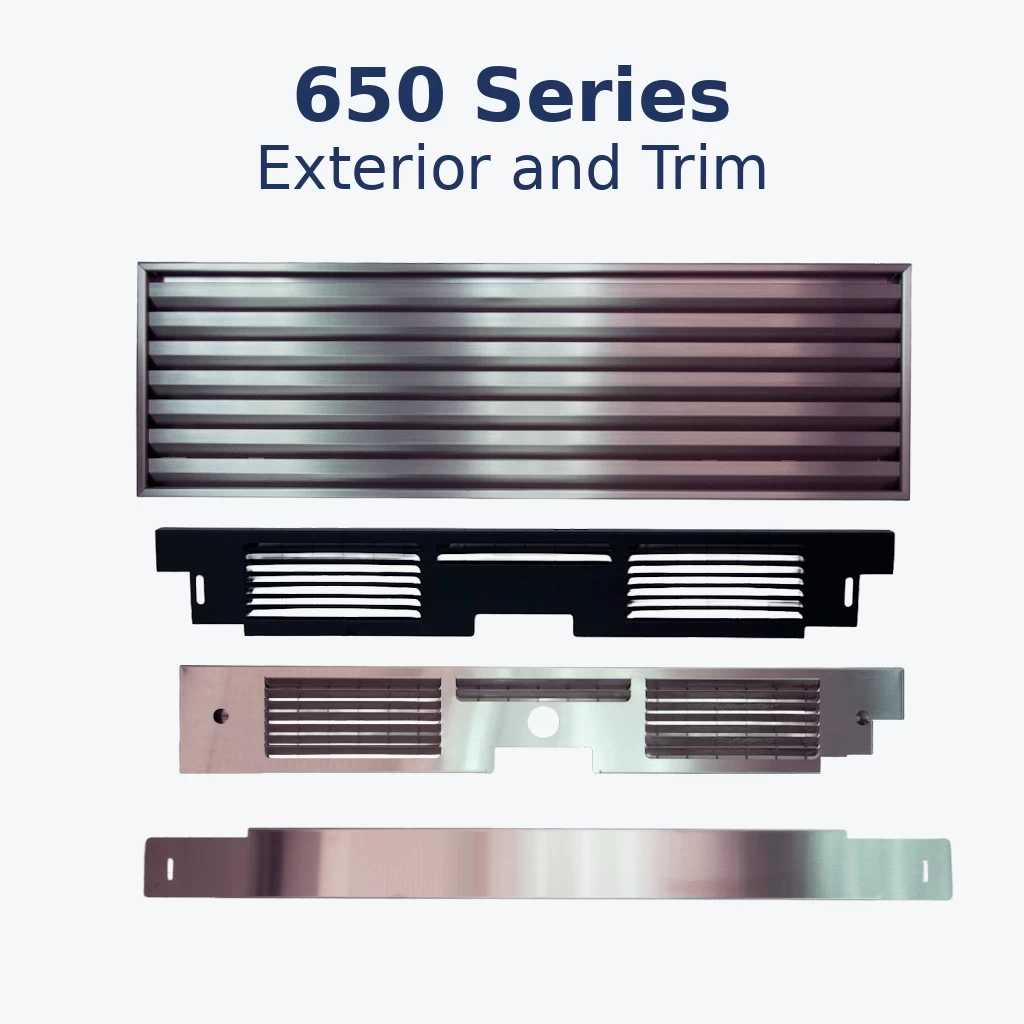

Handles, grille, drain pan, kickplate, and exterior trim parts. Typical DIY difficulty: easy.
Select the exterior part needed

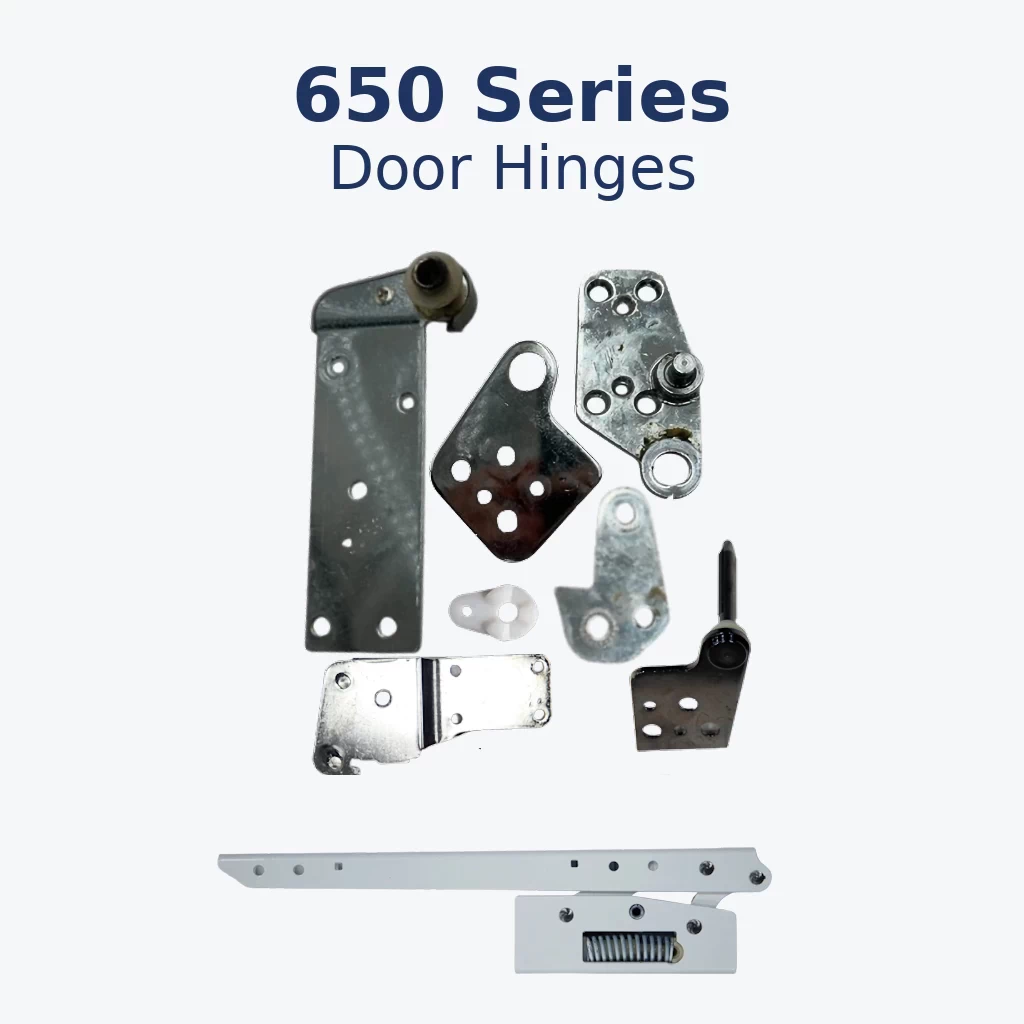

Upper and lower hinges, closers, gears, and cabinet support parts. Typical DIY difficulty: moderate.
Select the door hinge needed

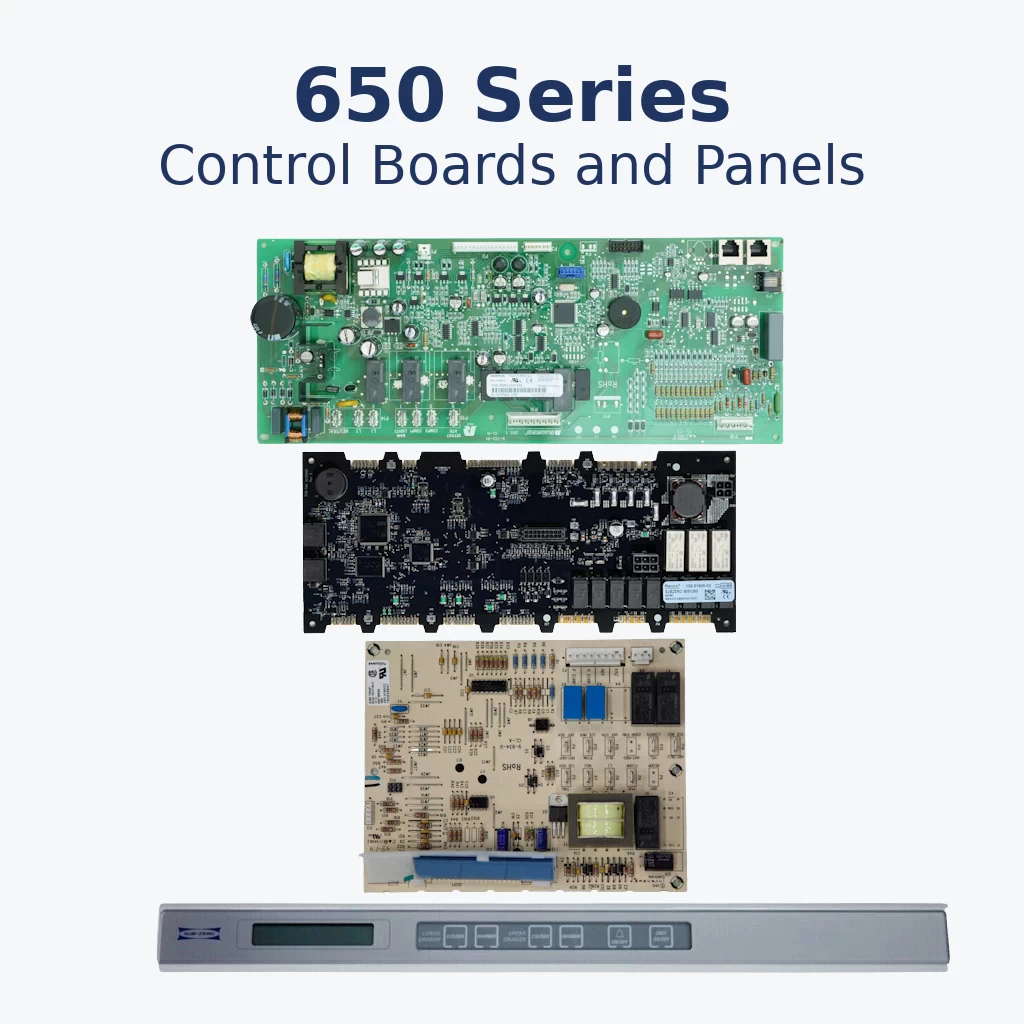

Control boards, temperature controls, defrost components, thermistors, switches, fan motors, and water valves. Typical DIY difficulty: moderate.
Select the mechanical part needed

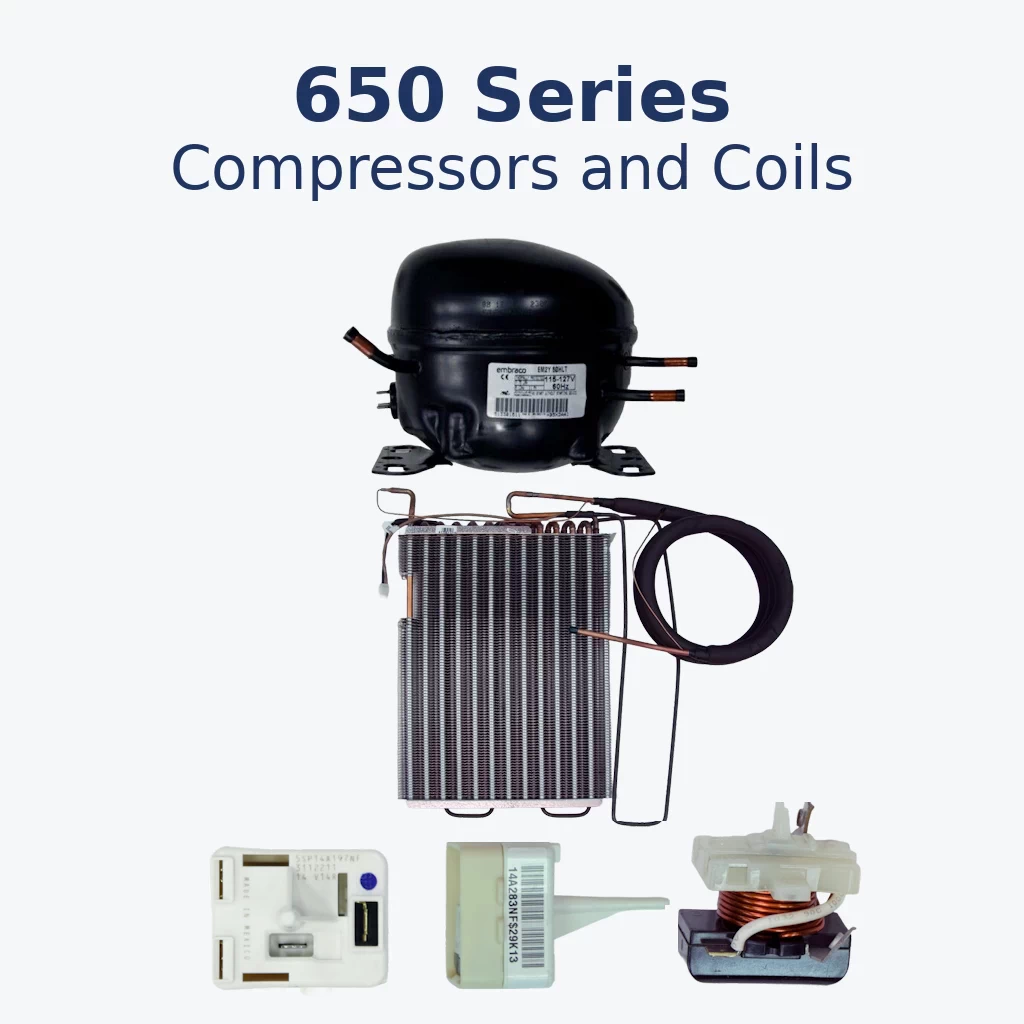

Compressors, relays, overloads, coils and more. DIY difficulty: advanced. Professional service is usually recommended.
Select the sealed-system part needed

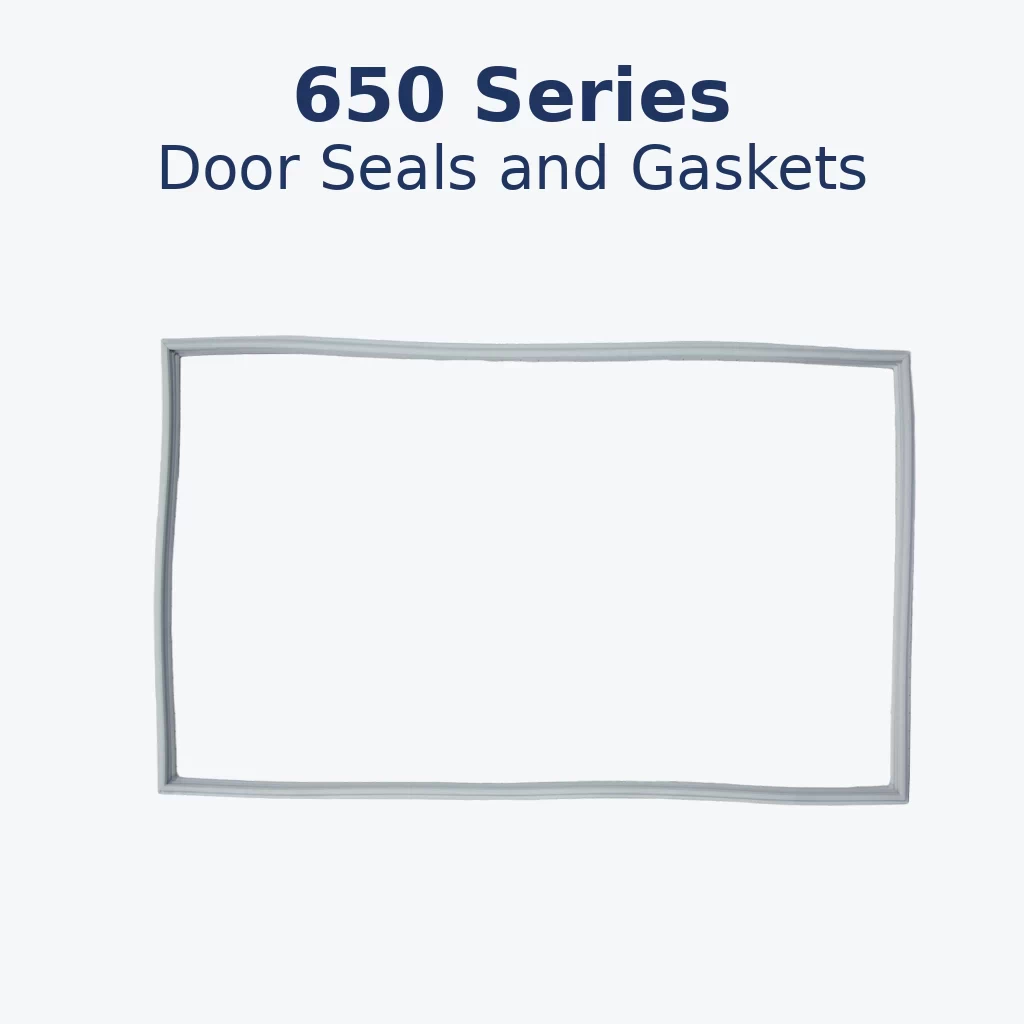

Freezer and refrigerator door seals, gasket sets, and common 650 seal replacements. Typical DIY difficulty: easy.
Select the door seal needed
Door seal / gasket repairTypical total after service call, labor, taxes, and installation: $600-$1200
Icemaker / water valve repairTypical total after service call, labor, taxes, and installation: $600-$1300
Fan motor / thermostat / controlsTypical total after service call, labor, taxes, and installation: $500-$1100
Control board / keypad repairTypical total after service call, labor, taxes, and installation: $1000-$1500
Door hinge repairTypical total after service call, labor, taxes, and installation: $600-$1000
Compressor / sealed-system repairTypical total after service call, labor, taxes, and follow-up visit: $1500-$3500+
Pre-Owned 650 UnitsEstimated used-market value: $2,000-$7,000 depending on condition, finish, and customization.
Actual totals vary by region, service company, diagnostic fee, labor rate, taxes, after-hours charges, and whether the technician must return after the part arrives. Contact us for help finding a local Sub-Zero repair company in your area.

DIY installation support is available for parts purchased through us.

Many service calls are related to damaged door gaskets. Before contacting a repair company, check for dust accumulation around the compressor and carefully inspect the door gasket for any tears, splits, bunching, or visible air gaps.

Common Indicators of Gasket Failure
  • Torn or split sections
  • Exposed gasket magnets
  • Bunched corners
  • Water dripping around the seal
  • Rust-colored stains or mildew on the gasket
  • Visible gaps when the door is closed
  • Poor door closure
  • Extended appliance run times

Icemaker-related complaints typically point to issues with the icemaker assembly, the control arm kit, bucket components, or the water valve.

Airflow and temperature concerns are most often caused by faulty fan motors, thermostats, thermistors, switches, or control boards.

Higher-cost repairs generally involve sealed-system or compressor failures. Lower-cost repairs usually involve door seals, bins, handles, switches, or other hardware components.

Tip: Do not use paint or touch-up coatings on shelves or interior parts inside the unit. Odors can circulate through the cabinet and some customers have had difficulty removing the smell afterward.

Helpful Troubleshooting Links

Technical Reference Documents

These internal reference documents can help confirm model details, identify assemblies, and narrow down the correct part category before ordering.

Related Help for Sub-Zero 650

These links can help you troubleshoot common Sub-Zero 650 problems, confirm service information, and find the right replacement part for standard-door, glass-door, BI, and left-hand or right-hand hinge models.

Sub-Zero error codes and troubleshooting Sub-Zero door seal installation guide Sub-Zero 650 Service Manual (PDF Download) Sub-Zero 650 Parts Diagram Guide (PDF Download) Sub-Zero parts hub

650 Model Series FAQ

The most commonly replaced parts on the 650 are the freezer and refrigerator door seals. Worn seals can create visible gaps, condensation, warmer cabinet edges, and longer run times.
The 650 family includes standard-door and glass-door versions. The G models are the glass-door versions. Finish, hinge, and installation suffixes such as /O, /P, /S, /B, LH, RH, and BI should be matched to your exact model tag before ordering parts.
Common signs include torn gasket sections, splits, magnets showing, bunching in the corners, water dripping, rust-colored stains or mildew on the gasket, visible gaps when the door is closed, poor door closure, and extended appliance run times.
In most cases, yes. Many 650 units stay in service for 30 years or more. Because some parts are discontinuing, it can make sense to buy wear-item parts while they are still available, especially door seals.
An E3 or E03 error usually points to a sensor, thermistor, or temperature-reading issue depending on the exact control configuration. Use the full Sub-Zero error-code troubleshooting guide for a quick summary of related codes before ordering a control, thermistor, or sensor-related part.
Use our Sub-Zero error codes and troubleshooting guide for a quick summary of common service codes, likely causes, and next steps before ordering a part.
