Wolf Infrared Charbroiler Burner & Radiant Plate Set
Two-piece heat system for Legacy Dual Fuel and SRT charbroiler models
DF484CG, DF484CG-LP, DF486C, DF486C-LP, DF604CF, DF604CF-LP +8 more View all 14 compatible models Show fewer compatible models
DF484CG, DF484CG-LP, DF486C, DF486C-LP, DF604CF, DF604CF-LP, DF606CG, DF606CG-LP, SRT364C, SRT364C-LP, SRT484CG, SRT484CG-LP, SRT486C, and SRT486C-LPEvery order is manually reviewed by our parts experts before processing. If you provide your model or serial number and we ship the wrong part, we’ll cover the return or exchange, including a prepaid return label.
OEM part description

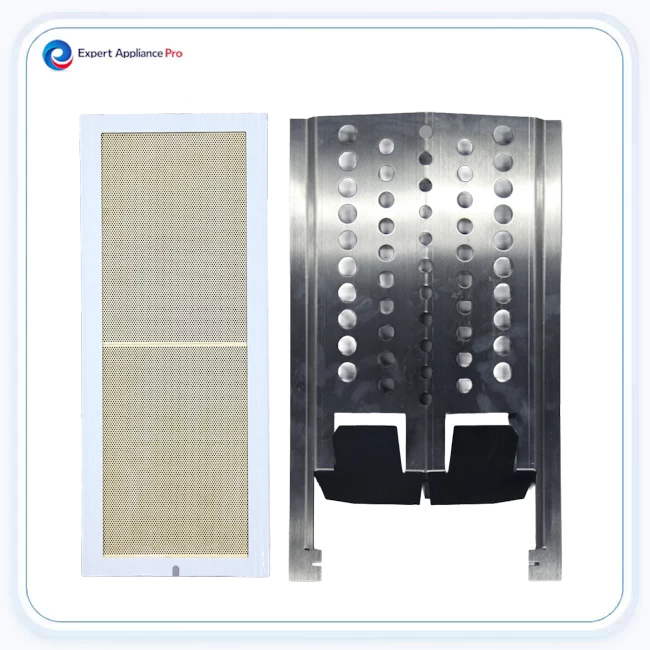

This two-piece set includes a genuine Wolf infrared charbroiler burner and matching radiant plate for select Legacy Dual Fuel ranges and SRT sealed burner rangetops with an infrared charbroiler. The burner creates the infrared heat used for charbroiling, and the radiant plate installs directly above it to help spread that heat beneath the cooking grate.
Expert Appliance Pro supplies these as our technician-recommended charbroiler burner and radiant set.
Part details
The burner and radiant plate are two of the main heat-producing components beneath the charbroiler grate. If the burner is weak, damaged, or no longer heating properly, or the radiant plate is warped or deteriorated, the charbroiler can lose searing performance, develop uneven heat, or become unreliable during use.
Specifications / Important Notes:
- Part Type: Infrared charbroiler burner and radiant plate set
- Included Components: 1 infrared burner and 1 radiant plate
- Burner Position: Lower heat source in the charbroiler assembly
- Radiant Position: Above the burner and below the cooking grate
- Function: Produces and spreads infrared charbroiler heat
- Application: Legacy Dual Fuel and SRT infrared charbroilers
- Fuel Versions: Natural gas and LP
- Quantity: 2 components
- Separate Components: Charbroiler grate, cover, pan, frame, igniter/electrode, and orifice
- Does Not Fit: This listing is for the charbroiler section only, not the griddle section
- Brand: Genuine Wolf components
Tech Tip: This set does not install side by side in the appliance. The burner installs at the bottom of the charbroiler assembly, the radiant plate sits above it, and the cooking grate goes on top as the food-contact surface.
