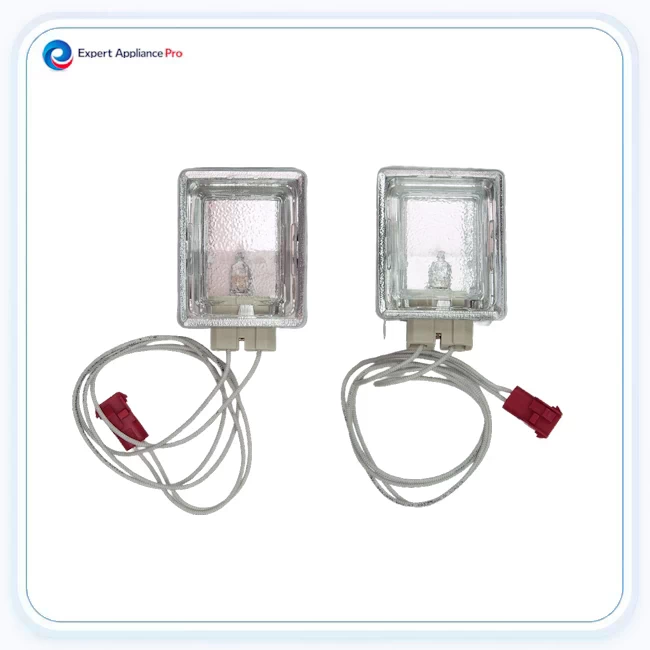

Wolf Later Style 40w Halogen Oven Lamp Assembly
Wolf Catalog ID: W398

Wolf Later Style 40w Halogen Oven Lamp Assembly

Genuine Wolf part used on these models:
SO30F/S, SO30U/S, DO30F/S, DO30U/S, DO30U/P, DO30U/B +21 more View all 27 compatible models Show fewer compatible models SO30F/S, SO30U/S, DO30F/S, DO30U/S, DO30U/P, DO30U/B, SO36U/S, SO36U/P, SO36U/B, IR304TE/S, IR304PE/S, IR365TE/S, IR365PE/S, DF304, DF366, DF364C, DF364G, DF486C, DF486G, DF484CG, DF484DG, DF484F, DF604CF, DF604GF, DF606CG, DF606DG, and DF606F

Later-style cavity light for select wall ovens, Dual Fuel ranges and Legacy Induction ranges

In Stock
$320.00
Back to Parts Catalog
You can add a model, serial number or comments when adding this item (optional).
Item subtotal: $320.00
Free UPS Ground in the 48 contiguous states. AK/HI shipping is calculated at checkout. Expedited delivery available.
Part Order Guarantee

Every order is manually reviewed by our parts experts before processing. If you provide your model or serial number and we ship an incorrect part, we'll cover the return or exchange, including a prepaid return label.

Questions After Purchase?

Our technician-backed team is available to help with parts questions, installation guidance, and troubleshooting.

Need help before ordering? Email Parts Research

Part Description

Genuine Wolf 120-volt halogen oven lamp assembly for select later-production L Series wall ovens, Legacy Dual Fuel ranges, and Legacy Induction ranges. This service light mounts inside the oven cavity and provides the interior illumination used to monitor food during cooking. Bulbs preinstalled.

Part details

A working cavity light lets you check cooking progress through the oven window without opening the door unnecessarily. If a known-good bulb does not illuminate, a damaged lamp socket, assembly, wiring connection, or related electrical component may be the cause.

Specifications / Important Notes:

Part Type: Oven cavity lamp assembly
Lighting Type: Halogen
Electrical Rating: 120 V
Lamp Wattage: 40 W
Application: Later L Series wall ovens, Legacy Dual Fuel ranges, and Legacy IR Induction ranges
Location: Interior oven cavity
Bulb System: 40-watt 120-volt.
Quantity: 2 housings with bulbs
Bulb Only: Separately serviceable
Brand: Genuine Wolf

Tech Tip

If the existing light housing or glass lens is heat-worn, damaged, or difficult to remove, replacing the complete lamp assembly can avoid reusing weakened components that may crack or break during bulb service. The glass lens also helps protect the light socket and bulb area from grease and steam, which can contribute to premature bulb failure. Disconnect power and allow the oven to cool completely before servicing the light.

Also Called: Wolf oven light assembly, oven lamp socket, halogen oven light, 40 watt oven lamp, wall oven cavity light, Dual Fuel oven light, oven light housing
