Sub-Zero Refrigerator Door Hinge Cam, Shim & Bearing Repair Kit
Sub-Zero Catalog ID: S179

Sub-Zero Refrigerator Door Hinge Cam, Shim & Bearing Repair Kit

Genuine Sub-Zero part used on these models:
611, 650, 501R, 501F, 511, 550 +8 more View all 14 compatible models Show fewer compatible models 611, 650, 501R, 501F, 511, 550, 550SS, 201R, 201FD, 201RIM, 2011ICE, 2711, 2811, and 801

Expert Appliance Pro technician-recommended seven-piece door hinge service set for older models

In Stock
$160.00
Back to Parts Catalog
You can add a model, serial number or comments when adding this item (optional).
Item subtotal: $160.00
Free UPS Ground in the 48 contiguous states. AK/HI shipping is calculated at checkout. Expedited delivery available.
Part Order Guarantee

Every order is manually reviewed by our parts experts before processing. If you provide your model or serial number and we ship an incorrect part, we'll cover the return or exchange, including a prepaid return label.

Questions After Purchase?

Our technician-backed team is available to help with parts questions, installation guidance, and troubleshooting.

Need help before ordering? Email Parts Research

Part Description

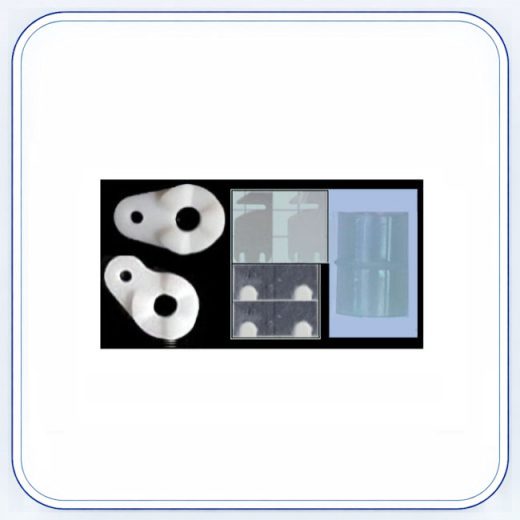

Expert Appliance Pro supplies these genuine Sub-Zero door hinge components as our technician-recommended repair kit. The seven-piece set includes two door closer cams, two pairs of metal hinge adjustment shims, and one plastic hinge bearing.

Part details

The door closer cam gears work together at the lower refrigerator door hinge to guide the door as it closes. Worn or damaged cams may cause clicking, uneven movement, difficulty closing, or improper door alignment. Use the metal shims for hinge adjustments as needed, while the bearing supports movement at the applicable hinge.

This set provides genuine replacement components commonly used during Sub-Zero door hinge maintenance. Install individual components only where specified for your appliance, or if the door needs vertical adjustment. Some pieces in this kit aren't needed for all models or if a door isn't out of alignment.

Specifications / Important Notes:

  • Part Type: Refrigerator door hinge and closer repair set
  • Brand: Genuine Sub-Zero
  • Kit Contents: Two door closer cams, four hinge shims and one bearing. May not be needed on some models and configurations.
  • Upper Door Closer Gear Cam: 1
  • Right-Hand Lower Door Closer Gear Cam: 1
  • Bottom Door Hinge Adjustment Shims: 2
  • Additional Hinge Shims: 2
  • Door Hinge Bearing: 1
  • Total Quantity: 7 individual components
  • Cam Material: Molded plastic
  • Shim Material: Metal
  • Bearing Material: Plastic
  • Door Hinges: Not included
  • Mounting Screws: Not included
  • Kit Assembly: Expert Appliance Pro technician-recommended service set

Tech Tip

Worn cams are a common cause of irregular closing movement. Hinge shims can be used for height adjustment on some models, but they should not be installed simply because they are included in the set.
Refrigerator door must be removed for installation.
